We are the trusted manufacturers and exporters for providing a wide range of automatic Pouch Packaging Machines, which caters to the packing requirements of clients in the food industry. Our machines are durable and high performing that makes them cost effective in varied sense. We offer our products at reasonable prices.

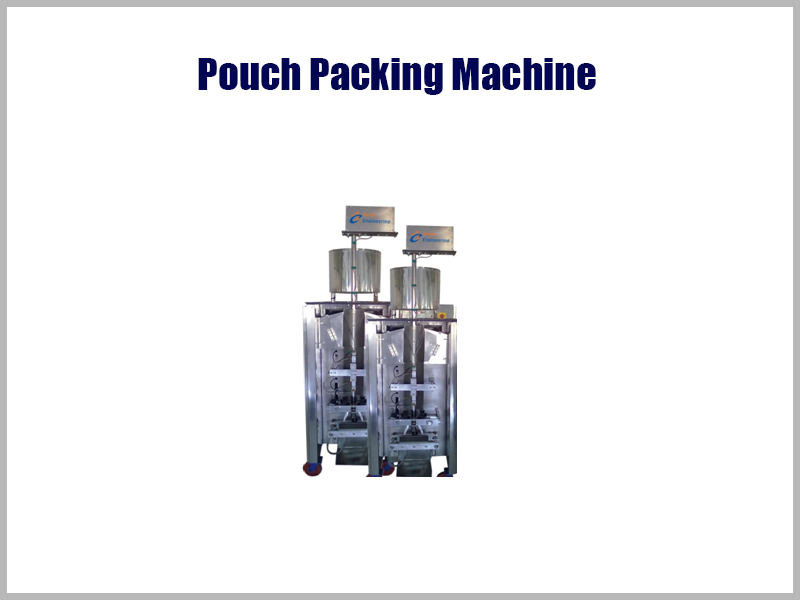

We are one of the renowned organizations, manufacturing, supplying and exporting premium Automatic Pouch Packing Machine. With an aim to ensure high-value to our patrons, this application is made with core accuracy at our professionals' end. In order to attain international standards, our offered equipment is fabricated with quality raw materials obtained from authentic market vendors, at our end. The Automatic Pouch Packing Machine is used widely by variegated mills and factories for pouch packing solutions with low labor costs.

FEATURES

• Suitable for any type of powders like Detergent powder, Etc.
• Electro magnetic clutch-break system. Filling range set by timer.
• The machine is very much suitable to pack detergent powder, coffee powder, Skimmed Milk Powder, Spices, Flour, Baking Power, Curry Powder, Besan, Henna, Pharmaceutical . Powder, Talcum Powder etc.
• Manufactured to highest food grade standards to ensure complete sterility.
• Designed for fast and easy change over for container size and fill weights without additional change parts in many instances.
• Accuracy of the pouch length is maintained by clutch-break mechanism.
• Clutch-break combination mechanism designed specially for extra strength and maintenance free application.
• P.L.C (Pre Logic Control System) based total control system.

TECHNICAL SPECIFICATIONS

• FEEDING HEAD

Continues gravity flow filling system

• FILM WIDTH

325 mm

• FILLING ACCURACY

+/- 3 ml

• POUCH WIDTH

up to 150 mm

• POWER REQUIREMENT

Single phase, 230 V, AC 50 Hz

• MACHINE DIMENSIONS

1500 (H) x 800 (W) x 950 (Dept) mm

• PRODUCTION SPEED

3000 pouches / hour

• FILM THICKNESS

60 to 80 microns

• INNER CORE DIA. OF FILM ROLL

70 mm

• POUCH LENGTH

Up to 160 mm

• COOLING WATER REQUIREMENT

Not required

• NET WEIGHT

350 kgs (approx)

• MACHINE CONTROL SYSTEM

Electronic Timer System

• FILM MATERIAL

Co-Extruded Virgin films

• OUTER DIA. OF THE FILM ROLL

up to 350 mm

• POWER CONSUMPTION

1.2 kW / Hour

• POUCH COUNTER

Provided

• COATED

Powder Coated

• PACKING RANGE

100 to 500 ml

• SEALER HEATING SYSTEM

Continues Sealing system

• POUCH STYLE

Center sealed Pillow type

• PEAK POWER

3.5 kW

• DATE PRINTING DEVICE

Optional
